de Lisle Amp-Speaker Selector 8×8 MKII

de Lisle Amp-Speaker Selector 8x8 MKII

$549.00
de Lisle Amp-Speaker Selector 8x8 MKII
de Lisle Amp-Speaker Selector 8x8 MKII
de Lisle Amp-Speaker Selector 8x8 MKII
de Lisle Amp-Speaker Selector 8x8 MKII
de Lisle Amp-Speaker Selector 8x8 MKII
de Lisle Amp-Speaker Selector 8x8 MKII

de Lisle Amp-Speaker Selector 8x8 MKII

$549.00
The de Lisle Amp-Speaker Selector 8x8 MKII was designed as a studio tool to conveniently route the output of up to 8 amplifiers to various speaker cabinets. This version features a loop to allow a single attenuator (passive or active like the Reload II or Ox Box) to be easily shared between any combination of the amps and speakers.

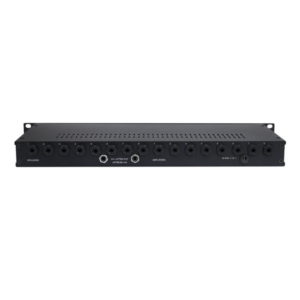

Just connect your amps' outputs to the numbered amplifier inputs on the rear panel. Then, hook up your speaker cabinets. Routing the signals is simple: select the desired amplifier with the Amplifier rotary dial and select the desired speaker cabinet with the Speaker rotary. You can activate an additional speaker by flipping the Extension switch. The Extension speaker will be added in parallel to the main speaker for additional tones, volume or to match impedance. For example, if one amp only has a 4 ohm tap, activating two 8 ohm cabinets will present the correct load to the amplifier.

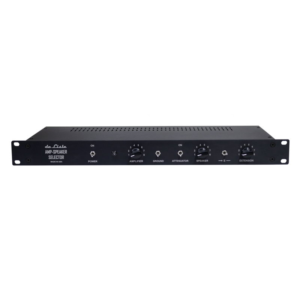

Connect your attenuator's input to the Attenuator In jack and its output to the Attenuator Out jack. Use the front panel toggle to bring the attenuator in or out of the circuit. There's also a handy Ground switch to prevent ground loops between connected devices.

As a precaution, the unused amps see a load. Compatible with tube or solid state amps up to 150W.

This unit operates on the supplied 12 VDC power supply.
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
Your Price: $549.00
549.000
A one-time price of $549.00 will be added to your order.
Facebook
X
Email
Pinterest
  • Specs
  • Model Comparison
• Power Switch
• Power Indicator LED
• Ground Switch
• Amplifier Rotary (1)
• Amplifier Output (8)
• Speaker Rotary (1)
• Speaker Input (8)
• Extension Switch (1)
• Extension Rotary (1)
• Attenuator Input (1)
• Attenuator Output(1)
• Attenuator Bypass Switch
• Silver Relay Contacts with Gold Overlay
• Protection Loads for Unused Amplifiers
• Premium Chassis with Laser Etched Panels
• 12VDC 700mA Power Supply Included
• Hand-Wired
• 150W Maximum Power Per Amplifier
• Lifetime Warranty
